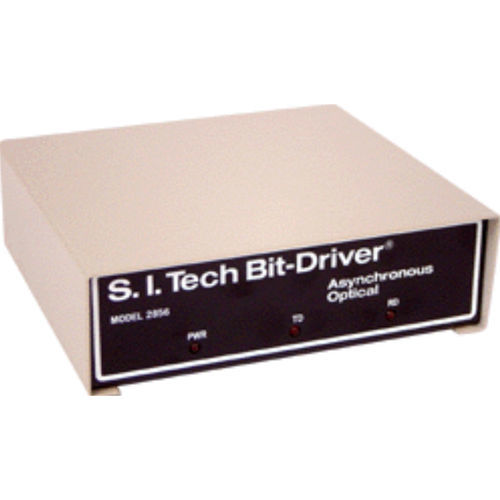

Fiber optics converter 2856

TTL

Operation Mode: - Asynchronous, simplex or full duplex, 20 Mbps Input/Output Interface: - TTL, 50 or 75 ohm coax. BNC bulkhead jack Transmission Line Interface: - 2 ST fiber optic receptacles (SMA option) Transmission Distance: - See distance chart Transmitter Output Power: - 30 microwatts into 50 micron fiber Wavelength: - 820 nanometers (1300 nm option) Receiver Wavelength: - 820 nanometers (1300 nm option) Minimum Sensitivity: - 3 microwatts @ 820 nanometers Bit Error Rate: - 10-9 Operating Temperature: - 0 °C to 50 °C Metal Enclosure: - 7.5" x 7" x 3" (19 x 17.8 x 7.6 cm) Weight: - 3 lbs. (1.36 kg) Input Power: - 110 VAC 50/60 Hz 230V Version: - 2856V Mini Version: - 2817-T/R S.I. Tech Model 2856 is designed to convert TTL data to a light signal so that information can be transmitted over fiber optics. At the remote end, another 2856 will convert this data from light to TTL format.
