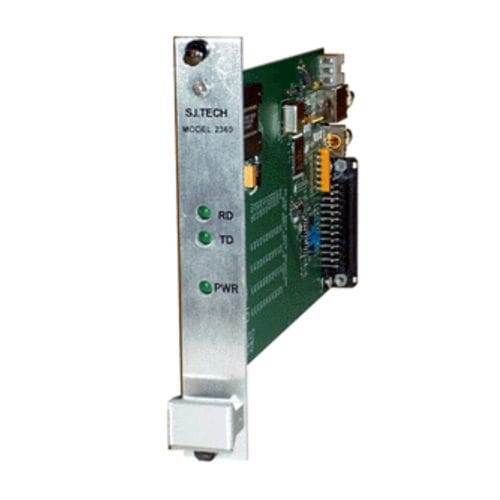

Converter card 2360

Operating Mode: - Asynchronous, simplex or full duplex Input/Output Interface: - RS-232-C, asynchronous with 2 control lines Transmission Line Interface: - Metal ST connector is standard for interfacing with fiber optic cable (SMA option) Transmission Distance: - See Chart Optical Power into a 50 Micron Core Optical Fiber: - 30 microwatts, 10 dB power budget @ 820 nanometers (High power & 1300nm options) Receiver Sensitivity: - 3 microwatts at less than 10-9 bit error rate Operating Temperature: - -40°C to +80°C Enclosure: - 19" rack holds 16 cards Card Size: - Eurocard 3.9" X 6.8" (9.9 X 17.3 cm) Weight: - 0.5 lb (200 grams) Mini Version: - S.I.Tech # 2560 - Features: Up to 115 Kbps asynchronous operation on fiber optic cable, simplex or full duplex operation with handshaking 2 full duplex control signals See distance chart -40°C to +80°C operating range (-20 to +60°C SM) Metal ST connector receptacle (SMA option) LED indicators for transmit data, receive data, and power Female RS-232C (V.24) connectors Complies with IEEE C37.90.1 IEC 801 Surge Protection
