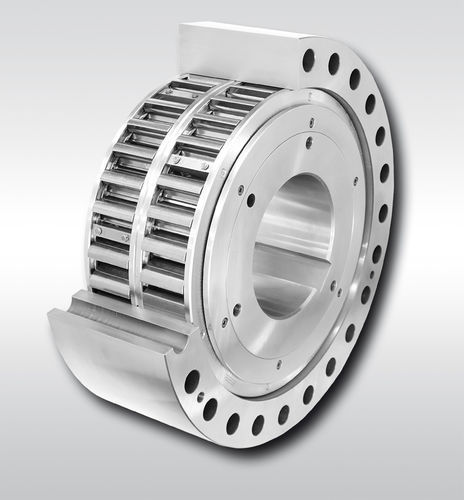

Sprag one-way clutch FXM series

with internal bearingswithout bearing functionexternal

for bolting to the face with sprag lift-off X Features Integrated Freewheels FXM are sprag free­wheels without bearing support and with sprag lift-off X. The sprag lift-off X ensures a wear-free freewheeling operation when the inner ring rotates at high speed. The freewheels FXM are used as: - Backstops - Overunning Clutches for applications with high speed freewheel­ing operation and when used as an overrunning clutch with low speed driving operation. Nominal torques up to 1 230 000 Nm. Bores up to 560 mm. A multitude of ­standard­ized bore diameters are available with short delivery times.
