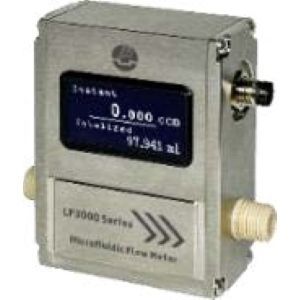

Thermal mass flow meter LF3000

massfor liquidsstainless steel

These products are designed for general purpose microfluidic metering applications. It opts a variety of interfaces including wireless data with APP. The LF3000 series microfluidic flow meters and sensors are designed for general-purpose microfluidic flow metering and control applications. They are made with Siargo's proprietary MEMS thermal time-of-flight sensing technology and smart electronic circuitry, which offers excellent reliability and rangeability. The current models can be readily applied to medical, bioscience, health care, pharmaceutic processes, fuel cells, and many others. Disposable options are available upon contacting the manufacturer. Specifications Flow range 0~5 / 0~50 / 0~500 sccm Response time 200 (others programmable) msec Power supply 8~24 Vdc Pressure rating 0.8 MPa Output Linear: 0.5~4.5 Vdc / Digital: I2C / IO-Link Wireless BT LE Display OLED Mechanical connection 1⁄4”-28 flat bottom M Pin-out M8 Calibration DI - water @ 20°C, 101.325 kPa Wetted materials PEEK, SiNx, Stainless steel Protection IP50 Weight <220 with display g
