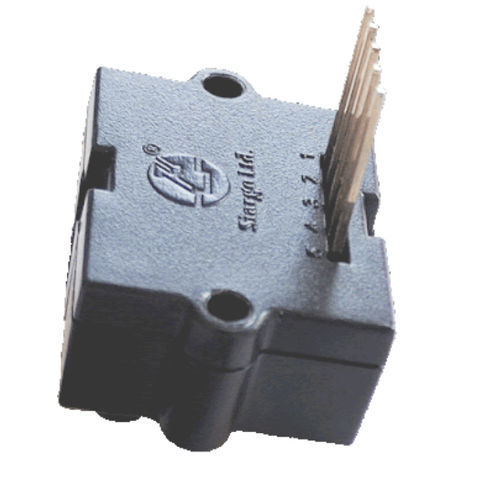

Differential pressure sensor FSP1000

capacitiveanaloghigh-sensitivity

The products are designed for general purpose differential pressure measurement. In particular for HVAC and CPAP. The products are designed for measurement of low differential pressure utilizing the mass flow sensing technology. The pressure sensing ranges can be fully customized with the l2C interface. Features ®Full scale range 100... SOOPa ®Compensated linear output ®High resolution 16 bit digit I'C ®Fast response time 5 msec ®High sensitivity at low differential pressure Applications *HVAC control *Medical CPAP flow metering *Leakage detection *Ventilation monitor and control *Smart home appliances *Gas boiler flow control *Filter clog sensing Turn-down ratio - 50:1 - Power consumption - < 50.0 - mW Response time - 5.0 - msec Burst pressure rating - 0.2 - MPa Pneumatic flow résistance - <95 mL/min at 500 Pa - Power supply - 3.0-3.6 - Vdc Null shift - ±0.5 - Pa Température coefficient - ± 0.12 - %/°C Output - Linear, l2C (14 bit) / Analog 0.4 - 2.4 Vdc - Mechanical connection - V-nozzle, manifold - Weight - 12 - g
