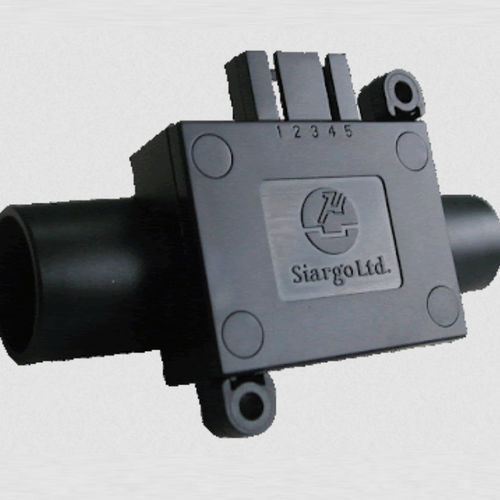

Mass flow sensor FS1015

volumegasanalog output

This sensor is designed for medical applications such as ventilators. It can also be used for general purpose flow measurement with threaded adapters. Features  Designed for medical ventilators  Fast response time, customizable  ISO-15mm ready, alternative customizable  Both analog and digital interface  Large turn-down ration over 100:1  Optional NPT or other threaded adapters Applications  Medical ventilators  Medical anesthesia equipment  Endoscope  Instrumentation  Process monitor with dry gases  Equipment and automation Specifications Flow range 0 ~ 100 / 0 ~ 150 SLPM Accuracy ±(2.0+0.5FS) % Turn-down ratio > 100:1 Power consumption - - 50.0 - mW Response time - 8.0 (maximum) - msec Maximum pressure rating - 0.2 - MPa Maximum pressure loss - 1300 (typical) - Pa Température - - 10-55 - °C Power supply - 5.0 ± 5% - Vdc Null shift - ±30.0 - mV Température coefficient - ±0.12 - %/°C Output - Linear, Analog 0.5 - 4.5 Vdc - Mechanical connection - ISO - 15mm, alternative customizable - Weight - 15 - g
