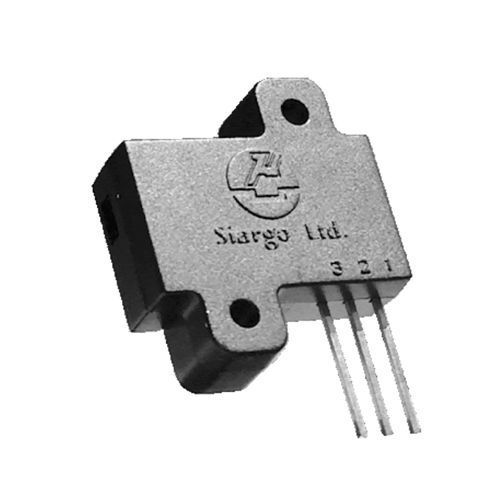

Mass flow sensor FS7002 series

volumeair

These sensors are used for free space gas flow speed measurement, and also applicable for clog sensing for filters. This serial of mass flow sensors are designed for air mass flow speed metering in an open space utilizing the Company's proprietary MEMS sensing technology. It can also be used for general purpose flow measurement when small footprint is required. -Designed for free space air mass flow speed -Fast response time -Compact footprint -Both analog interface -Large turn-down ration over 100:1 -Flow switch capability Applications -Free space gas flow speed measurement -Filter clogging sensing -Compact space flow measurement -Instrumentation -Wearable device applications -Motor or fan monitor Flow range - 0-5 - 0-10 - m/sec Repeatability - ±3.0 - ±2.0 - %FS Flow range - 0-5 - 0-10 - m/sec Repeatability - ±3.0 - ±2.0 - %FS Response time 20 msec Maximum pressure rating - 0.2 - MPa Humidity rating - <95 (no icing or condensation - %RH Temperature - -10-70 - °C Power supply - 5 ± 5% - Vdc Offset 0.2 - 0.8 Vdc Full scale output - 2.5 ~ 3.3 - Vdc Output load - Sourcing: 14; Sinking: 11 - mA Mechanical connection Flat-cut Weight - 2.7
