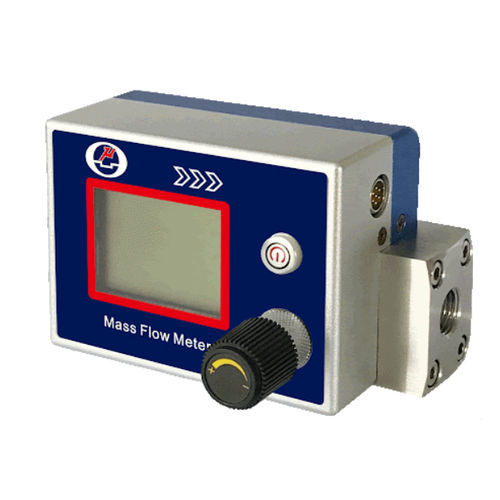

Mass flow meter MF5100V

for liquidsfor gasRS485

This MF5100V product series provide high precision control of mass flow while having the option of battery power which is ideal for mobile or lab applications. MF5100V series mass flow meters are designed for flow metering and control with mobile power applications and are made with Siargo's proprietary MEMS low power mass flow sensors and smart electronic circuitry. The meters directly meter and control the mass flow with a very precise manual control valve. The current models can be readily applied to regulate such as gas cylinder delivery for medical purposes on an ambulance or other cases where direct power is not available. Other applications include laboratory and pharmaceutical process control. MF5100V can measure a flow up to 50 SLPM. The connectors can be fully customized. Specifications Flow range 0~2...50 SLPM Accuracy ±(1.5+0.2FS) % Repeatability 0.25 % Response time 200 msec Power supply Lithium ion C-Cell / 8~24 Vdc Battery life >2 (normal usage) Year Output LCD 6 digital / RS485 Modbus Pressure sensitivity Null Pressure rating 0.8 MPa Temperature -10 ~ 55 °C Humidity <95 (no condensation) %RH Mechanical connection BSPT / NPT Pin-out 5 pins, M8 Calibration Air @ 20°C, 101.325 kPa Valve NS1.5 (29.8), SS Protection IP50 Storage temperature -20 ~ 70 °C
