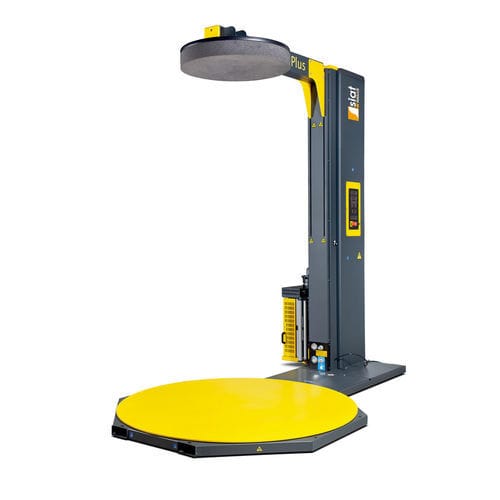

Turntable stretch wrapper ONEWRAP PLUS
semi-automaticwith mechanic brakingwith electromagnetic braking

Turntable stretch wrapper - ONEWRAP PLUS - SIAT - semi-automatic / with mechanic braking / with electromagnetic braking
Turntable stretch wrapper - ONEWRAP PLUS - SIAT - semi-automatic / with mechanic braking / with electromagnetic braking
Add to favorites
Compare this product

Characteristics

Type
turntable
Operating mode
semi-automatic
Braking type
with mechanic braking, with electromagnetic braking
Product applications
for logistics, for the construction industry, film, for food products
Height

2,714 mm
(107 in)

Width

1,650 mm
(65 in)

Length

2,823 mm
(111 in)

Maximum wrapping height

2,200 mm, 2,600 mm, 3,000 mm
(86.61 in, 102.36 in, 118.11 in)

Maximum pallet length

1,200 mm, 1,550 mm
(47.24 in, 61.02 in)

Maximum pallet width

1,000 mm, 1,550 mm
(39.37 in, 61.02 in)

Maximum pallet weight

1,200 kg, 2,400 kg
(2,645.55 lb, 5,291.09 lb)

Table diameter

1,650 mm, 1,800 mm, 2,200 mm
(64.96 in, 70.87 in, 86.61 in)

Rotational speed

Max.: 12 rpm
(75 rad.min-1)

Min.: 6 rpm
(38 rad.min-1)

Voltage

220 V, 240 V, 400 V

Description

SIAT Onewrap Plus is the new Siat machine that will allow you to maximize the results of your wrapping activity. Thanks to the icons on the control panel it is extremely quick to set a complete wrapping program that will optimize the film applied to all the different SKU you might need to wrap. This is not the only “Plus” of the machine: it has a very robust structure and the guarantee of a 2400 kg maximum weight for the platform (excluding HSD platform). Your business would be purchasing a reliable and high quality device! Moreover, with up to 10 customizable wrapping programs that can be recorded, the operator will only have to program the OnewrapPlus once, and then simply recall the desired wrapping program from the control panel when required. Advantages ✓ Flexibility ✓ Reliability ✓ Easy to install ✓ User-friendly control panel Key features • Different turntables, carriages and columns available • Belt driven carriage • Two forklift access point for machine easy repositioning • Pallet height photocell • Reclining column hinged to the base to facilitate machine installation and possible repositioning • Turntable blocking feature to avoid movements during loading and unloading operations Options • Ramp for all the platform sizes; • Pit frame; • Lifting frame; • Weighing system; • Pressing unit.
