Dot peen Marking gun e-mark XL
hand-heldindustrialbattery-powered

Dot peen Marking gun - e-mark XL - SIC Marking - hand-held / industrial / battery-powered
Dot peen Marking gun - e-mark XL - SIC Marking - hand-held / industrial / battery-powered
Dot peen Marking gun - e-mark XL - SIC Marking - hand-held / industrial / battery-powered - image - 2
Dot peen Marking gun - e-mark XL - SIC Marking - hand-held / industrial / battery-powered - image - 3
Dot peen Marking gun - e-mark XL - SIC Marking - hand-held / industrial / battery-powered - image - 4
Dot peen Marking gun - e-mark XL - SIC Marking - hand-held / industrial / battery-powered - image - 5
Add to favorites
Compare this product


Characteristics

Technique
dot peen
Configuration
hand-held
Applications
industrial
Other characteristics
battery-powered, continuous
Power

100 kW
(135.96 hp)

X travel

120 mm
(4.72 in)

Y travel

40 mm
(1.57 in)

Depth

0.3 mm
(0.012 in)

Description

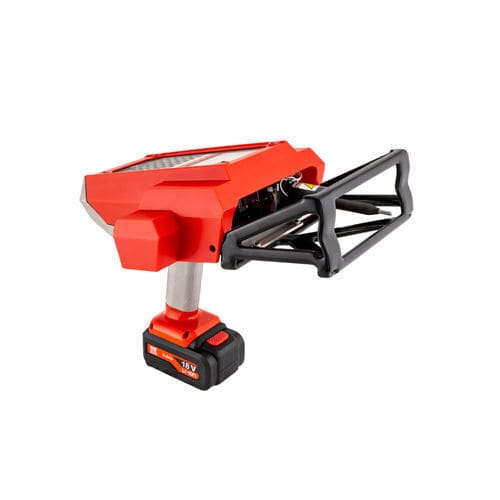

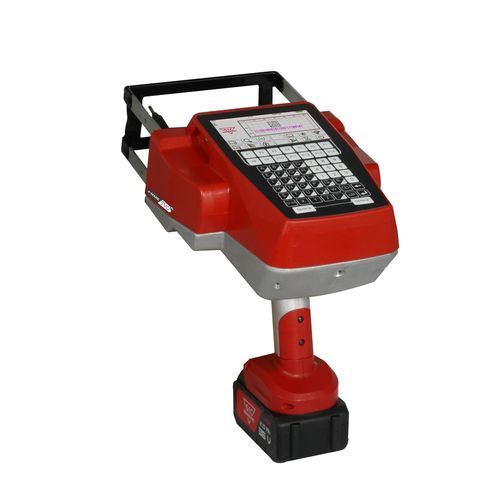

The E-MARK XL is a cordless portable dot peen marking machine that features A VERY LARGE MARKING WINDOW: 120 x 40 mm. It can operate for long periods on its integral battery. This MOBILE AND PORTABLE MARKING MACHINE is fully autonomous due to its integral 18V Li-Ion battery, giving up to 4 HOURS OF CONTINUOUS USE. The E-MARK XL comes with two batteries and a fast charger, in a convenient carrying case, which allows you to continue working with one battery while the other is being charged. The E-Mark XL is a robust design with a cast alloy base. It is particularly suitable for DEMANDING INDUSTRIAL ENVIRONMENTS. Its high striking force makes it especially suitable for marking heavy or very large parts. The E-MARK XL is also ERGONOMIC AND VERY EASY TO USE. For example, the stylus/piece distance is very simple to adjust using the adjustment knob under the marking head. The E-MARK XL is also a very light marking gun (3.6 kg), in spite of its basic metal structure. The E-MARK XL can mark alphanumeric text, logos, 2D Datamatrix codes or QR codes. The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.
