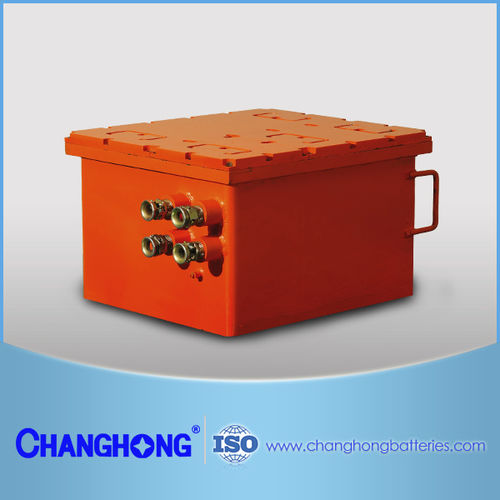

Lithium battery system DXBL1440/24

square24 Vindustrial

DXBL1440/24 mining flameproof type lithium ion battery power supply includes series connection lithium iron phosphate battery pack and management system. The power supply is mainly apply to mining equipment power supply and backup power supplies, emergency actions cavern for mine power communication equipment power supply and backup power supply. It integrated advanced Charge and discharge management techniques, Equalization technology, FLP technology, Communication bus technology, communication technology, display technology, etc, is advanced, stable and reliable mining back-up power. Main technical parameters: Nominal voltage: 24V; Rated capacity: 60Ah; Max.Outline Dimensions(Contains no protruding part): 490mm×440mm×300mm; weight: 85Kg; Operating temperature range: 0℃～40℃; Charging mode: Constant current/Constant voltage; Rated input voltage: 127V; Back-up power maximum output voltage:28.8V; Back-up power minimum output voltage:21.6V; Rated output current: 5A; Maximum current output: 8A. Function: Input, output, back-up power state display function; Current limit, limit pressure and short circuit protection function, fault automatic recovery after cancellation; Backup power function; CAN communication function; Battery management system functionality; Self discharge capacity test function. The characteristics of the system: maximum output power of 200W; Back-up power energy can reach 1440Wh; System security is high, the battery charge and discharge smoothly; Group consistency good battery, group battery capacity is less than 1 ah, poor charging voltage less than 50mV; Battery long cycle life, small self-discharge battery; Products do not need to maintain.
