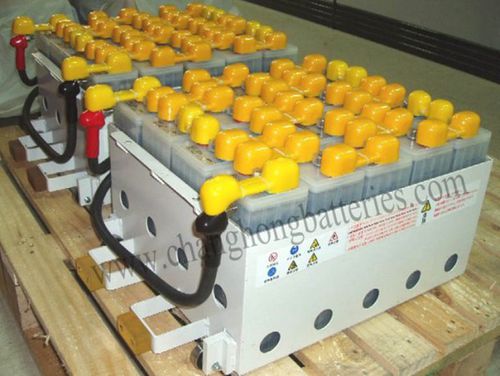

Ni-Cd battery system 40KPX90

48 Vfor AGVCE

Changhong sintered Ni-Cd rechargeable Battery for AGV application is developed and manufactured in compliance with the international standard IEC 60623-2001, Korea KS certificate, CE certificate, UkrSEPRO certificate and national standards GB/T15142-2002, TB/T3058-2002, TB/T 3063-2002, TB/T2702-1996. Because of the excellent performance, Changhong sintered plate nickel cadmium batteries have been successfully assembled on the AGV, which is fully accepted by the end-users in Korea and Taiwan markets. Technical Advantages ★High Reliability The assemble pattern of Changhong AGV Ni-Cad plate group, battery formation and other technologies are by virtue of Changhong aircraft Ni-Cad battery technology. ★Excellent Quick Charging Performance Changhong AGV Ni-Cad rechargeable battery has excellent quick charging performance under high current. The Max. charging current acceptable is 3ItA. ★Excellent Charging & Discharge Efficiency Changhong AGV Ni-Cad rechargeable battery has excellent charging & discharging efficiency, which could reach 95% or better. ★Wide Operation Temperature Range Changhong AGV Ni-Cad rechargeable battery can normally work under the temperature range of -40℃～ 60℃. ★Long Topping-up Period The special design of ultra-low water consumption prolongs the topping up period. ★High Safety Strong resistance to overcharge & over-discharge and other abuse. ★Structure Advantages The characteristics of compact volume, light weight and high energy density reduce the installation room size. ★Long Service Life The expected service life is more than 5 years; changing-discharging cycle life with 10% capacity is more than 12000 times.
