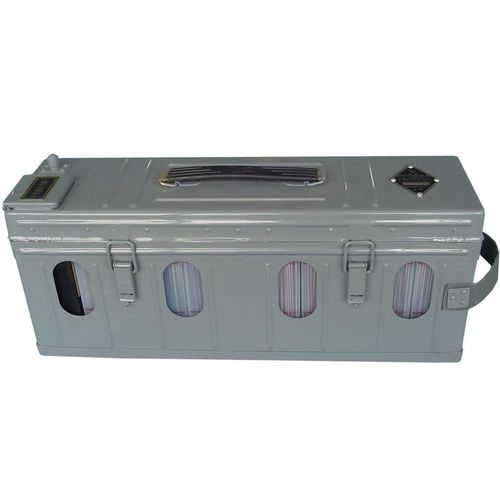

Silver oxide battery system 15XYG45-3G

industrialfor aircraftTUV

Changhong Sliver-zinc battery has the character of high power, high gravimetric specific power, low internal resistance, high mechanical strength etc. It mainly applied as DC power for onboard airborne emergency power, communication and higher-power device starting. ChangHong silver-zinc battery is better than big power, high specific energy by weight, internal resistance low mechanical strength higher characteristic. Mainly used as the plane airborne emergency power supply, but also can be used for communication, power equipment starting, dc power supply. Type - Rated capacity（Ah） - nominal voltage（V） - maximum weight (kg) - Max. dimensions（mm） - Screw Torque of terminals - canning material - - - - length - width - height - - XYG45-(3) - 45 - 1.5 - 0.93 - 56 - 52.5 - 163.5 - M10 - Nylon PA XYG45-(3)G - 45 - 1.5 - 0.93 - 56 - 52.5 - 163.5 - M10 - XYG45-(5) - 45 - 1.5 - 0.93 - 56 - 52.5 - 163.5 - M10 - 15XYG45-(3) - 45 - 22.5 - 17.9 - 434 - 131 - 227 - - Steel shell combination 15XYG45-(3)A - 45 - 22.5 - 22.0 - 359.5 - 255 - 206 - - 15XYG45-(3)G - 45 - 22.5 - 17.9 - 434 - 131 - 227 - - 18XYG45-(5) - 45 - 27 - 23.0 - 409 - 253 - 189
