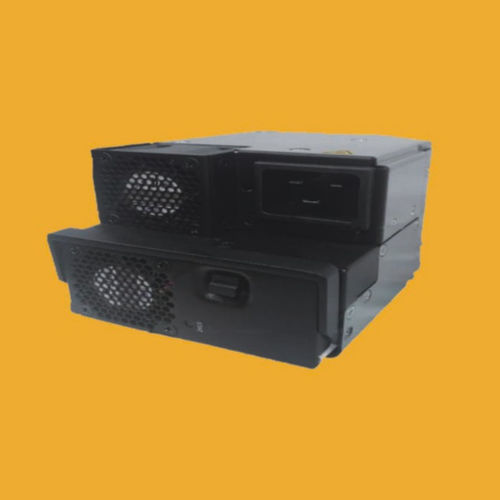

AC/DC power supply TMN1APSU
single-outputwith short-circuit protectionwith overcurrent protection

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product

Go to the SICHUAN CHANGHONG BATTERY CO., LTD. website for more information

Characteristics

Type
AC/DC
Output
single-output
Protection
with short-circuit protection, with overcurrent protection
Certifications
TUV
Input voltage

Min.: 90 V

Max.: 290 V

Output voltage

53.5 V

Current

56 A

Power

3,000 W

Description

The module is an AC to DC power supply module with an input range of 90~290V AC or 190~290V DC, a rated output of 53.5V DC, and a rated output power of 3000 W. The module is equipped with an I2C communication function, an equalization function, and support for 1+1 parallel use and hot-swappable applications. Features • Weight : <2.0Kg • I2C communication for control, programming and monitoring • Conforms to IEC 60950-1, IEC 62368-1, EN 60950-1, EN 62368-1, UL 60950-1, UL 62368-1 and GB 4943.1. Standards • Complies with RoH S2.0 standard
