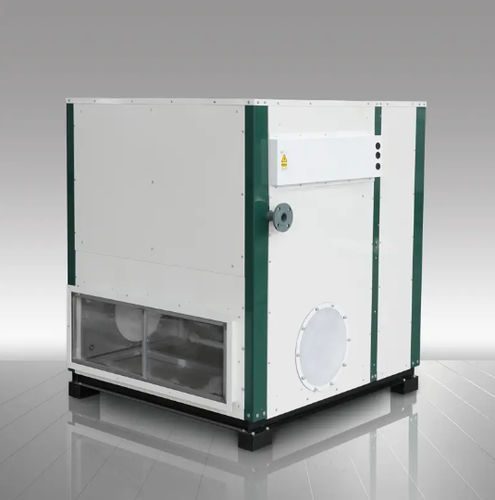

Plate-fin heat exchanger ZL3 series
air/waterair/airstainless steel

plate-fin heat exchanger
plate-fin heat exchanger
plate-fin heat exchanger
plate-fin heat exchanger
plate-fin heat exchanger
plate-fin heat exchanger
plate-fin heat exchanger
Add to favorites
Compare this product


Characteristics

Type
plate-fin
Fluid
air/water, air/air
Material
stainless steel, nickel, galvanised steel
Other characteristics
high-performance, corrosion-resistant, high-temperature, sanitary, low-maintenance, microchannel, stainless steel
Applications
industrial, for the food industry, for the chemical industry, for the pharmaceutical industry, for heat pump, for the food and beverage industry, for construction equipment, for farm machinery, for air conditioning, for domestic applications
Power

Max.: 10 W
(34.12 BTU/h)

6 W
(20.47 BTU/h)

Min.: 2 W
(6.82 BTU/h)

Temperature

Max.: 150 °C
(302 °F)

50 °C
(122 °F)

Min.: 20 °C
(68 °F)

Description

The ZL-3 steam air heater includes nine components: fin tube of steel-aluminum + electrical steam valve + waste valve + heat preservation box + ventilator + Fresh air valve + waste heat regeneration device + dehumidification ventilator + electrical control system. It is purposefully engineered for supporting downward air flow drying room/heating rooms. Following the conversion of outside steam heat to heat within the preservation box by the fin tube, it is blended with recycled or fresh air, and, driven by the ventilator, it is expelled from the upper outlet into the drying room or heating area. Subsequently, cooled air passes through the lower air outlet for supplementary heating and continual circulation. Once the moisture content of the circulating air reaches the discharge standard, the dehumidification ventilator and fresh air valve will commence concurrently. The dispelled moisture and fresh air undergo ample heat exchange in the waste heat regeneration device, allowing for the discharge of moisture and the introduction of fresh air with recovered heat into the circulation system. - Advantages/Features 4.1 Uncomplicated design and effortless setup. 4.2 Substantial air capacity and minimal air temperature variation. 4.3 Durable stainless steel electric heating fin tube. 4.4 Steel-aluminum fin tubes with elevated heat exchange efficiency. The base tube is fashioned from seamless tube 8163, which is resilient to pressure and long-lasting. 4.8 Automatic fresh air replenishment.
