Motor feedback rotary encoder SKS/SKM36 series
absoluteopticalsolid-shaft

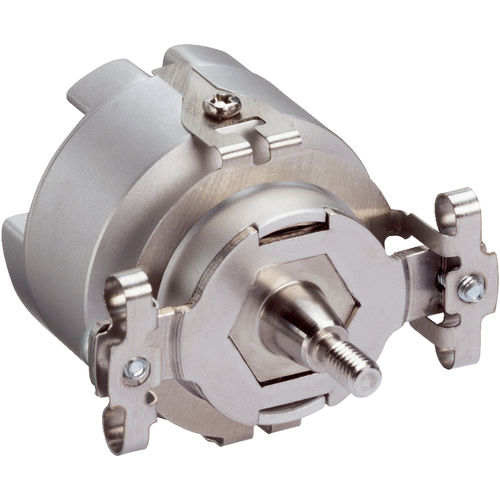

Motor feedback rotary encoder - SKS/SKM36 series  - SICK - absolute / optical / solid-shaft
Motor feedback rotary encoder - SKS/SKM36 series  - SICK - absolute / optical / solid-shaft
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
optical
Construction
solid-shaft
Protection level
standard
Other characteristics
compact, high-resolution, for motor feedback

Description

Compact size with a high resolution for the standard performance range The SKS36/SKM36 Encoder is the first of a new generation of optical motor feedback systems. With 128 sine/cosine signals per revolution, this family represents the standard solution among the MFB systems with HIPERFACE® interface. Special feature of this generation: A very small code disk of only 2 mm code track radius allows for holistic scanning. In this, the unavoidable eccentricity errors of the code disk, ball bearing and shaft that occur with conventional systems are compensated for by the system. High angular speeds are no longer limited by the code disk due to the arrangement of the code disk in the middle of the rotary axle. Absolute position indication with an increment number of 4,096 increments per revolution and a maximum of 4,096 revolutions. Storage of motor-specific data in the electronic type label and the programming are important features of this product family. The motor feedback systems certified to SIL2/PL d meet current requirements with regard to safety technology and make the certification process easier.
