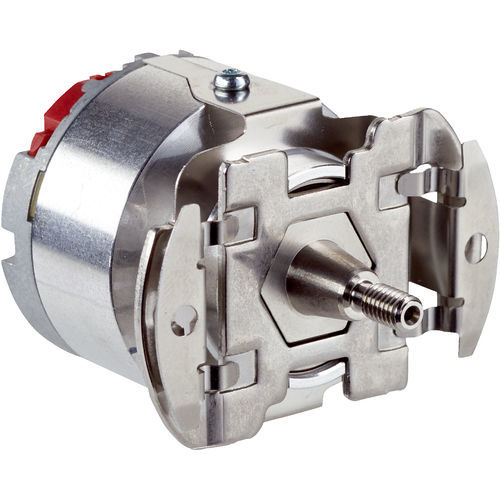

Motor feedback rotary encoder EKS/EKM36 series
absolutemechanicalsolid-shaft

Motor feedback rotary encoder - EKS/EKM36 series - SICK - absolute / mechanical / solid-shaft
Motor feedback rotary encoder - EKS/EKM36 series - SICK - absolute / mechanical / solid-shaft
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
mechanical
Construction
solid-shaft
Output signal
analog, digital
Protection level
rugged, rugged, robust
Other characteristics
compact, for motor feedback

Description

Compact motor feedback system for highly dynamic servo drives From a mechanical point of view, the EKS/EKM36 motor feedback system is based on the proven 36 mm design. This design is both compact and rugged, and has been proven many times over in a wide range of applications and surroundings. In combination with an absolute location indicator system with a resolution of up to 20 Bits per revolution and a maximum of 4,096 revolutions, this design is unique in its class. Benefits Saving all analog components on the controller part due to exclusively digital data transmission Enormous cost saving as the separate encoder cable is longer necessary, data transmitted synchronously to the controller cycle Minimal cabling thanks to integration of the encoder communication into the motor cable Optimization of the controller circuit via automated synchronization with the controller cycle Features Motor feedback system with HIPERFACE DSL® interface Compact, rugged design with 36 mm diameter Up to 20 bit resolution per revolution and 4,096 revolutions measurable with the multiturn system Facility for connecting an external temperature sensor E²Prom with 8 KB of free memory space SIL2-certified (only applies to EKS/EKM36-2...) Service life histogram
