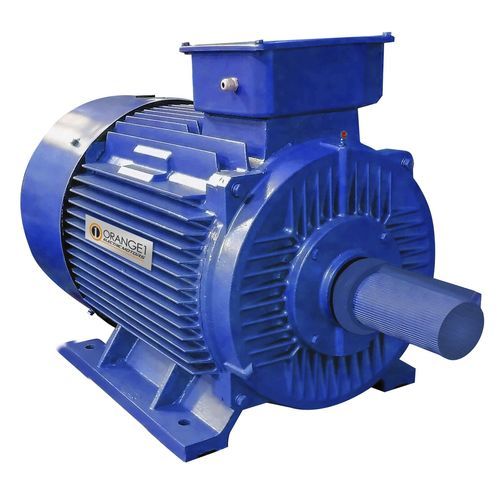

AC motor SR2Ca series
synchronousIP55IP54

AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
synchronous
Protection class
IP55, IP54, IP56, IP23
Configuration
with brake, variable reluctance
Efficiency classes
IE4
Applications
for pump, for fans
Other characteristics
high-efficiency, low-noise, with built-in encoder
Power

Max.: 750,000 W
(1,019.716 hp)

Min.: 500 W
(0.68 hp)

Intensity

Max.: 896 A

Min.: 112.3 A

Torque

Max.: 1,432.4 Nm
(1,056.484 ft.lb)

Min.: 238.7 Nm
(176.0561 ft.lb)

Rotational speed

1,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 18,849.56 rad.min-1)

Description

IE4 Super Premium Efficiency Motor. Motor designed to achieve highest efficiency and energy saving in variable speed and partial load conditions. This motor series has zero rotor losses because it is without windings. The stator is available with standard IEC mechanical parts to guarantee compatibility with standard asynchronous motors, or with sully laminated sheets in order to further reduce motor losses. Available in various frames with power from 0.5 up to 750kW. Insulation class F o H, degree of protection IP23 – IP54 – IP55, cooling method IC06 – IC416 – IC411. Field of application for all the application where high efficiency is required in variable speed and partial load conditions. It is ideal for fluid motion,, ventilation systems or pumps. Large number of accessories like encoder, tachogenerator, brake, sensors and relays. Various mounting forms. Protection degree up to IP56 Internal permanent magnet version to increase efficiency and field weakening range.
