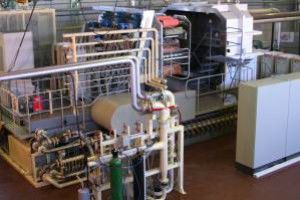

Magnetron sputtering deposition machine SAF25/50

Multifunctional R&D cluster tools SAF Application The SAF25/50 multifunctional R&D cluster tool is intended for research and development works as well as for feasibility studies and more general academic work in the field of thin film technologies. Engineering and Technology The tool is a multifunctional, expandable, modular and flexible system. The tool comprises an input/output chamber with ion gun, central substrate transfer chamber with radial telescopic transport arm and up to 7 deposition chambers. Substrate is positioned horizontally on a holder. Deposition zones are configured for substrate rotation or displacement during upward deposition. Tool multifunctionality and flexibility is founded on the following key features: - Each chamber can operate independently due to individual pumping means, controls and utility connections. - Deposition chambers and deposition sources are interchangeable. - The central transfer chamber prevents process cross-contamination and ensures substrate transfer without venting of the chambers. - Various types of deposition sources including sublimation thermal cells, resistive boats, crucibles and sputter magnetrons can be integrated. - Twin, single and dual sputter magnetrons can be powered by DC, pulsed DC, MF and RF power supplies. - Contact and contactless cooling and heating of the substrate is offered. - Glove box for substrate loading in inert gas atmosphere and substrate magazine can be added. - Preliminary agreed number of blanked-off flanges installed on the chambers allows attaching customized instrumentation and technological accessories.
