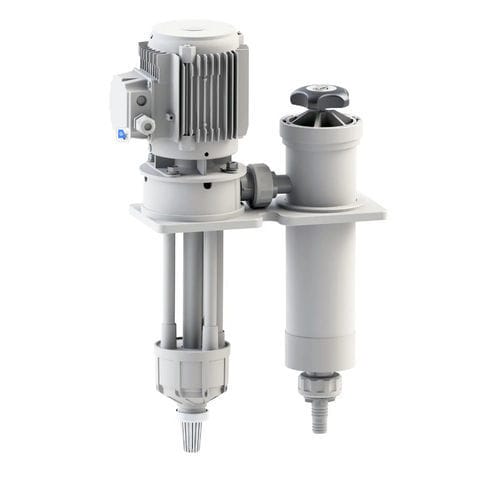

Cartridge pump J15
for industrial wateracidoil

Cartridge pump - J15 - Siebec - for industrial water / acid / oil
Cartridge pump - J15 - Siebec - for industrial water / acid / oil
Cartridge pump - J15 - Siebec - for industrial water / acid / oil - image - 2
Cartridge pump - J15 - Siebec - for industrial water / acid / oil - image - 3
Cartridge pump - J15 - Siebec - for industrial water / acid / oil - image - 4
Add to favorites
Compare this product


Characteristics

Technology
cartridge
Fluid
for industrial water, acid, oil
Operation
with electric motor
Priming
normal priming
Mobility
stationary
Domain
industrial, chemical
Material
PP, plastic, PVDF
Other characteristics
compact, flow, corrosion-resistant, filter, vertical
Flow

4.5 m³/h
(158.916 ft³/h)

Power

250 W
(0.34 hp)

Fluid temperature

110 °C
(230 °F)

Width

349 mm
(13.74 in)

Height

564 mm
(22.2 in)

Description

The J15 allows entry into the low flow vertical filter range. Available in polypropylene and PVDF, filtration is on a 10" QUALITHERM™ heat-welded cartridge. This economical filtration media can filter from 0.2 to 100 µm. Excellent chemical compatibility Like most plastic filters, the J SERIES is available in polypropylene and PVDF for excellent acid and base compatibility. Durable and resistant design SIEBEC’s know-how is expressed through a welded tank, without seals to eliminate any risk of leakage. In-bath or outboard setup Vertical filters can be mounted outside or inside the bath to save space. Ergonomic design The cartridge filter cover is locked with a single screw-on handle. This makes it very quick and easy to replace the filter cartridge.
