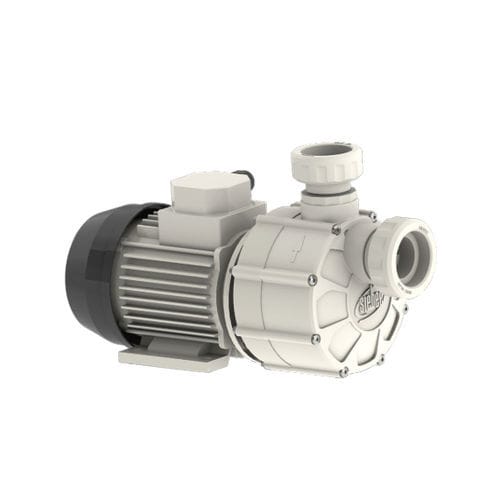

Centrifugal pump AP19acidfor alkaliswith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- acid, for alkalis
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer
- Voltage
- 400 V, 230 V
- Other characteristics
- suction, mechanical, small, seal
- Flow
12.5 m³/h
(441.43333 ft³/h)- Power
1,100 W
(1.5 hp)- Fluid temperature
75 °C, 80 °C
(167 °F, 176 °F)- Length
177 mm
(7 in)- Width
367 mm
(14.45 in)- Height
190 mm
(7.48 in)
Description
The AP pump range has been designed for the transfer of viscous fluids up to 15 cSt.
Features & benefits
Transfer of viscous fluids
Specially designed for transferring viscous fluids up to 15 cSt
Easy integration
The mechanical seal allows a small footprint
Excellent wear resistance
Ultra-durable carbide/carbide seal
Excellent performance
Closed centrifugal impeller coupled to a bladed diffuser
Self-priming
Eccentric suction impeller
Improved protection
Strainer integrated into the volute
