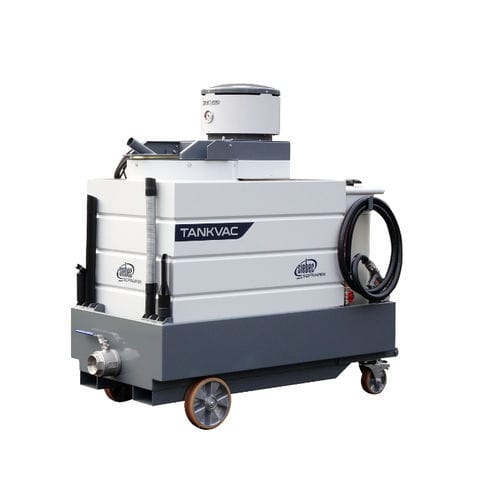

The TANKVAC SQ is a self-contained vacuum cleaner with a capacity of 600 liters with a fine filtration at the discharge. It is ideal for the suction of machine tool lubricants.
Liquid / solid separation
Provided by a 15 l stainless steel basket for 2000 µm pre-filtration coupled with a removable 200 µm bag.
Simplified and safe emptying
The emptying of the unit is done by gravity. The sloped bottom ensures a total emptying. The 3″ drain valve is padlockable to prevent accidental spillage.The discharge is done via a removable pistol handle on a cam fitting. A mechanical float valve ensures that the capacity of the tank is not exceeded, thus preventing any overflow. The optional electric float stops the motor.
Handling & mobility
The TANKVAC SQ, despite its imposing size, remains easy to maneuver in an industrial environment. The grip bar and polyurethane steering wheels ensure excellent maneuverability while the large diameter wheels in the front give it a good crossing capacity. Its compact and very narrow “cubic” design allows it to easily slip between machines.For even more mobility, the TANKVAC SQ can be picked up by a forklift truck or towed by an optional drawbar.
On-board accessories
The accessories are placed directly on the cart in a dedicated space on the drip tray.
