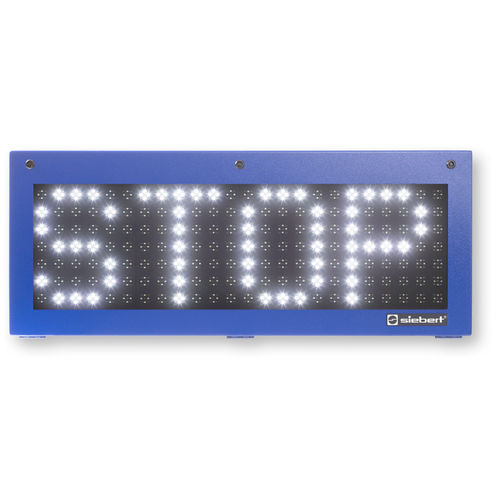

LED display SX602 series

alphanumericnumericdot-matrix

The SX602 series comprises single line alphanumeric large size displays. With character heights up to 250 mm they are suitable for long reading distances. The LED matrix is ready for marquee, so that longer texts can also be displayed by devices with a smaller number of characters. Readable one- or double-sided The large size displays are off ered either with a one- or a double-sided display. The versions with a double-sided display have a LED matrix on the front and on the rear side and show the same information on both sides. Menu-guided parameterization After opening the housing the menu display is visible inside the device. Operation modes, parameters and device functions are defined without the need of the main display to be visible – an operational convenience especially with large volume devices or at exposed installation sites. Easy mounting and installation The front frame is locked with quick-action releases. When opening the unit the front frame hinges downward. Connectors, modules and controls are now directly accessible without disassembling housing parts.
