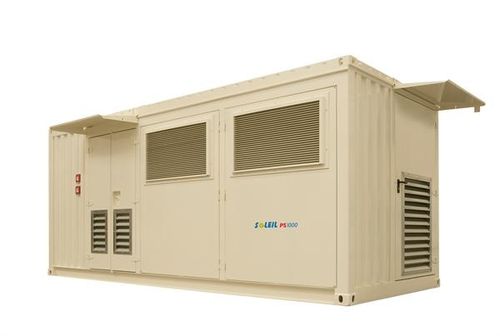

Medium-voltage transformer station 0.5 - 1 MW | SIAC SOLEIL PS1000

for PV applications

Is the result of SIACs great experience in the field of renewable energy and of its great attention to energy efficiency. This new integrated system is dedicated to the direct connection with medium-voltage grids of the energy produced by large photovoltaic installations and by solar parks. SIAC SOLEIL PS1000 is a plug & play system, extremely compact and designed to supply 500 kW or 1 MW installations. It consists of an insulated and coated carbon-steel frame. Dimensions: 7108 x 2438 x 2660 mm, weight: 15,000 kg. As a further advantage, more SIAC SOLEIL PS1000 systems can be installed on photovoltaic installations which exceed 1 MW, through a simple in-out connection on their MT side, making a chain from one container into the adjacent. SIAC SOLEIL PS1000 is equipped with an integrated communication interface which enables the remote monitoring of the whole system. The monitoring system is controlled by a microprocessored supervising unit which makes queries and stores the following most important functionality parameters in a database through a dedicated communication bus: energy produced by every single inverter and by the whole system instantaneous power voltage, frequency, inverter power parameters photovoltaic module radiation and temperature inverter and cooling system status and alarm
