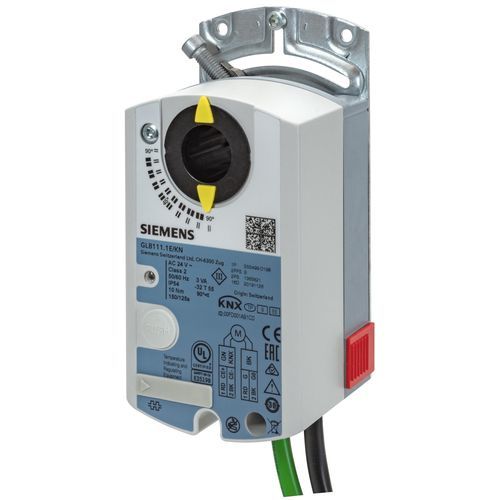

Mechanical damper actuator GLB111.1E/KNrotaryIP54adjustable
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Movement
- rotary
- Protection class
- IP54
- Other characteristics
- compact, adjustable, non-spring return
- Torque
10 Nm
(7.38 ft.lb)- Actuator force
10 N
- Voltage
24 V
- Power
3 W
(0 hp)- Ambient temperature
Max.: 55 °C
(131 °F)Min.: -32 °C
(-26 °F)- Rotation angle
90 °
- Operating time
150 s
Description
KNX S-Mode or KNX PL-Link communication
For shaft dia. 8...16 mm, square 6...12.8 mm, min. shaft length 30 mm
With position indication and adjustable mechanical limit stop
Button for disengaging the gear train to enable manual override
With base made of steel, plastic housing and two 0.9 m connecting cables
Technical Specifications
Air damper area
1,5 m²
Power consumption
3 VA, 2.5 W, Quiet power: 0.5 W
Cable length
0,9 m
Positioning signal
KNX TP
Spring return function
No
Ambient humidity, operation
95 % r.h.
Dimensions (W x H x D)
68 x 137 x 59.5 mm
Auxiliary switch
0
