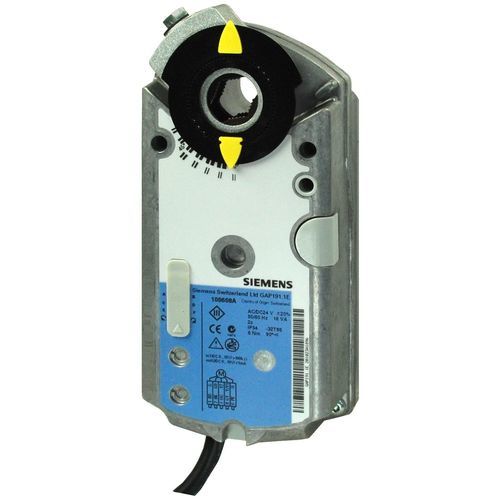

Pneumatic damper actuator GAP191.1ElinearrotaryIP54
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary, linear
- Protection class
- IP54
- Other characteristics
- adjustable
- Torque
6 Nm
(4.43 ft.lb)- Voltage
24 V
- Power
5 W
(0 hp)- Ambient temperature
Max.: 50 °C
(122 °F)Min.: -32 °C
(-26 °F)- Rotation angle
90 °
- Operating time
2 s
Description
With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
With position indication and adjustable mechanical limit stop
Button for disengaging the gear train to enable manual control
With housing made of die-cast aluminium and 0.9 m connecting cable
Technical Specifications
Air damper area
1 m²
Power consumption
30 VA, 22 W, Quiet power: 5 W
Cable length
0,9 m
Positioning signal
DC 0(2)...10 V, 0(4)...20 mA
Ambient humidity, operation
95 % r.h.
Dimensions (W x H x D)
81 x 192 x 63 mm
Position feedback
DC 0…10 V
Auxiliary switch
0
