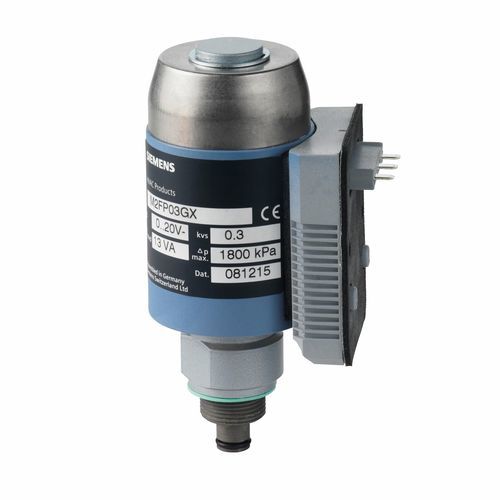

Refrigerant valve M2FP03GXpiston actuatorelectrically-actuatedpilot
Add to favorites
Compare this product
Characteristics
- Type
- piston actuator
- Operation
- electrically-actuated
- Function
- pilot
- Body
- threaded, steel, IP54
- Applications
- HVAC
- Number of channels
- 2-way
- Other characteristics
- modulating, for refrigerants
- DN
Max.: 5 in
Min.: 2 in
- Pressure
32 bar
(464.1 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Hermetically sealed 2-port valve as a control valve for main valves from 2" to 5".
For use with refrigerants such as R22, R134a, R404A, R407C, R507 and ammonia R717
ZM electronics must be ordered separately (see below)
Technical Specifications
Operating voltage
AC 24 V
Power consumption
13 VA
Positioning signal
DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time
1 s
Spring return function
Closed
Mounting position
Any
Leakage rate
0.25 % of kvs
Valve characteristic
Linear
Stroke resolution ΔH/H100
1:200
Material, inside set
CrNi steel
Δpmax
1800 kPa
Dimensions (W x H x D)
112 x 149 x 67.5 mm
kvs
0.3 m³/h
