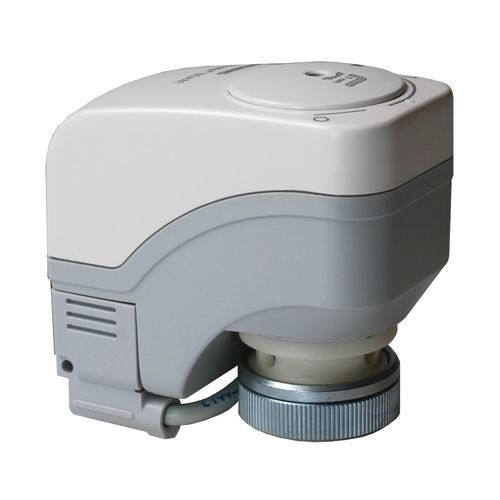

Electromechanical valve actuator SSA31.04

linearIP40three-position

Electromotoric actuators for 3-position or SPDT control of zone valves V..I46.. with internally threaded connections. For 3-position or SPDT (open/close) control of heating systems, domestic hot water storage tank charging as well as terminal units and zones. The actuators have automatic stroke adaption‚ force-dependent switching off in the end positions‚ position indication‚ manual control and 1.5 m connecting cable. Not suitable for radiator valves (soft seal). Additional info For fitting to the valve: Cap nut M30 x 1.5 Technical Specifications Power consumption 6 VA Cable length 1,5 m Positioning signal 3-position , SPDT Medium temperature 1…110 °C Ambient humidity, operation 5…85 % r.h. Dimensions (W x H x D) 98 x 96 x 48 mm Mounting position Upright to 90° inclined Position feedback None Auxiliary switch 0 Color White/Gray
