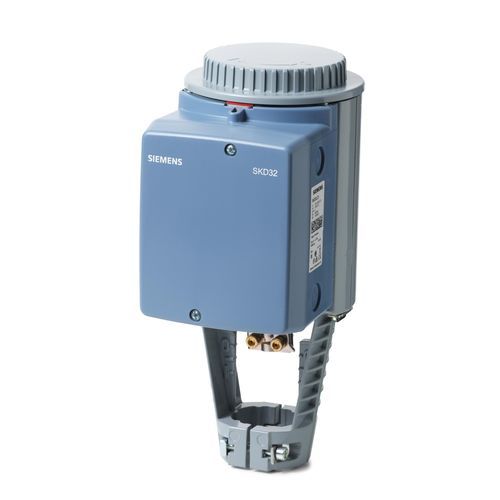

Electro-hydraulic valve actuator SKD32.21linearIP54three-position
Add to favorites
Compare this product
Characteristics
- Type
- electro-hydraulic
- Movement
- linear
- Protection class
- IP54
- Other characteristics
- aluminum, for control of shut-off, three-position, with spring return
- Actuator force
1,000 N
- Stroke
20 mm
(0.8 in)- Voltage
230 V
- Ambient temperature
Max.: 50 °C
(122 °F)Min.: -15 °C
(5 °F)- Operating time
10 s, 30 s
Description
Short running time for DHW control. With fail-safe function. Overload-proof through travel-dependent, fixed switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke. Optional functions: one auxiliary switch or one potentiometer. With manual control.
Additional info
SKD..U are UL listed. Control devices MK..5.. are control devices with safety shut-off function per DIN EN 14597.
Technical Specifications
Power consumption
16 VA, 12 W
Spring return function
Yes (8 s)
Position feedback
None
Medium temperature
-25…150 °C
Mounting position
Upright to horizontal
Dimensions (W x H x D)
300 x 127 x 169 mm
