Absolute pressure sensor QBE2003-P1
piezoresistiveanalog24VAC

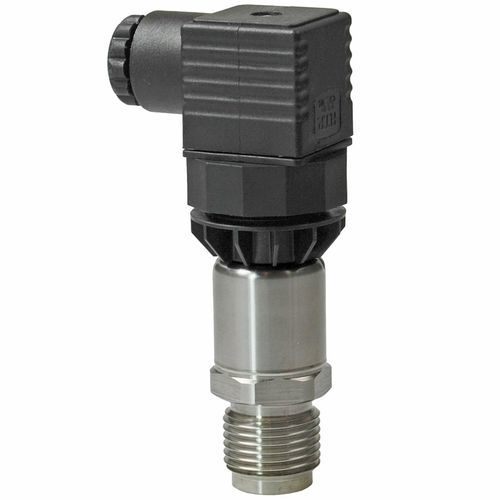

Absolute pressure sensor - QBE2003-P1  - Siemens Building Technology HVAC Products - piezoresistive / analog / 24VAC
Absolute pressure sensor - QBE2003-P1  - Siemens Building Technology HVAC Products - piezoresistive / analog / 24VAC
Absolute pressure sensor - QBE2003-P1  - Siemens Building Technology HVAC Products - piezoresistive / analog / 24VAC - image - 2
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Technology
piezoresistive
Output
analog
Supply voltage
24VAC
Mounting
threaded
Process connection
G 1/2
Fluid
for gas, for liquids
Protection level
IP65
Applications
for HVAC systems
Pressure range

Max.: 1 bar
(14.5 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -15 °C
(5 °F)

Description

Pressure sensor for neutral and slightly aggressive liquids and gases (0…10 V) 0…1 bar With threaded connection G½" and plug DIN EN175301-803A. Additional info Suited for use with oil-containing media. Technical Specifications Analog output, signal DC 0...10 V Time constant 0.002 s Pressure connection External thread Connection, electrical Plug-in connection Max. permissible pressure 2.5 x scale end value (FS) Max. overpressure 2.5 x scale end value of measuring range Mounting position Any Dimensions (W x H x D) 32 x 101 x 52 mm Dimensions (Ø x L) 24 x 101 mm
