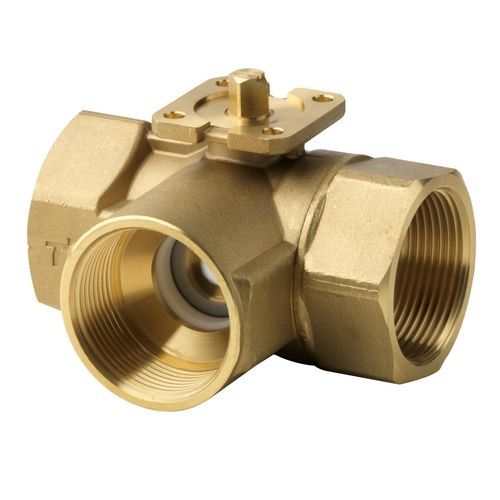

Ball valve VBI61.15-2.5hydraulicfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- hydraulic
- Function
- for control
- Media
- for water
- Body
- threaded, brass
- Applications
- heating, HVAC, air conditioning
- Number of channels
- 3-way
- Other characteristics
- ISO
- DN
15 mm
(0.591 in)- Pressure
40 bar
(580.2 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -10 °C
(14 °F)- Flow rate
2.5 m³/h
(88.29 ft³/h)
Description
Internally threaded connections Rp.. as per ISO 7-1.
For use in heating, ventilating and air conditioning plants as a control.
For closed circuits.
Technical Specifications
Angular rotation
90°
Leakage rate
„Waterproof“ as per EN 60534-4 L/1, better than class 4
Leakage rate bypass
500
Material, inside set
Brass UNS C35330 (DZR), chromium-plated
Connecting thread
Rp ½"
GDB..9E
Δpmax
350 kPa
GQD../GSD..9A
Δpmax
350 kPa
GMA../GLB..9E
Δpmax
350 kPa
GLD..9E Δpmax
350 kPa
