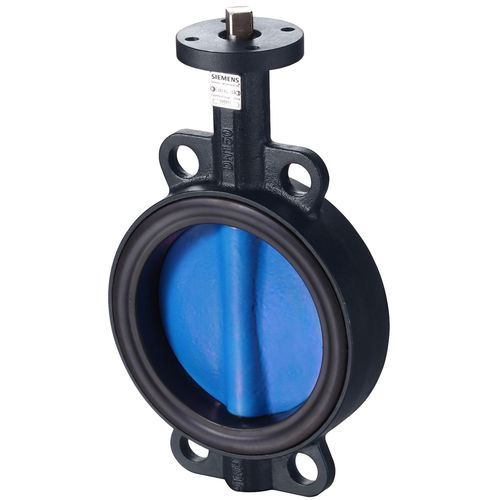

Butterfly valve VKF42.100hydraulicshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- hydraulic
- Function
- shut-off
- Media
- for water
- Body
- flange, wafer, stainless steel, cast iron, nylon
- Applications
- heating, HVAC, air conditioning
- Other characteristics
- ISO
- DN
100 mm
(3.937 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Flow rate
470 m³/h
(16,597.89 ft³/h)
Description
Butterfly valve is used as motorized or shut-off valves in heating, ventilation and air conditioning systems applications.
In open and closed circuits
For 2-position (SPDT) or DC 0…10 V control signals
For chiller and cooling tower sequencing circuits
To open or close the flow to a heat exchanger or to complete plant sections
Technical Specifications
Angular rotation
90°
Leakage rate
A to ISO 5208 (tight-closing)
Valve characteristic
Non-linear
Material, inside set
Stainless steel , Nodular cast iron EN-GJS-450-10 (QT450-10) , Nylon coating
Mounting position
Upright to horizontal
Required mounting set
Direct
SQL..B50 Δps
700 kPa
