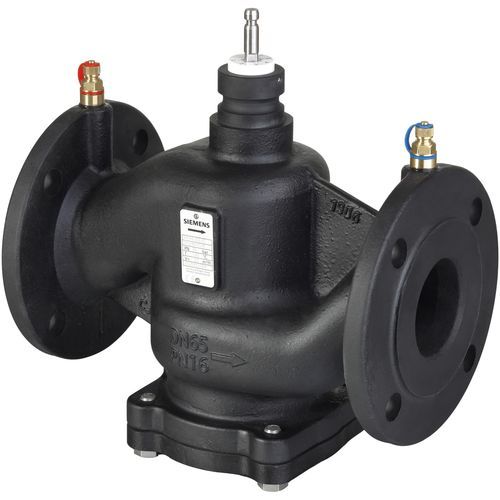

Globe valve VPF serieshydraulicfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- hydraulic
- Function
- for control
- Media
- for water
- Body
- flange, stainless steel, brass, cast iron
- Applications
- heating, HVAC, air conditioning
- Associated function
- reducing
- Other characteristics
- pressure-independent
- DN
50 mm
(1.969 in)- Pressure
25 bar
(362.6 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: 1 °C
(34 °F)- Flow rate
Max.: 24.6 m³/h
(868.74 ft³/h)Min.: 0 m³/h
(0 ft³/h)
Description
For use in heating, ventilating, air conditioning systems and district heating as a control valve in closed circuits
Technical Specifications
Stroke
20 mm
Leakage rate
Class IV (0…0.01% of volumetric flow)
Volumetric flow Vmin
5.7 m³/h
Valve characteristic
Linear
Rangeability
1:100
Material, valve body
Nodular cast iron GJS-400-18RT
Mounting position
Upright to 90° inclined
ΔPmin
55 kPa
SAX..P Δpmax
600 kPa
SAX..P Δps
700 kPa
SQV..P Δpmax
600 kPa
SQV..P Δps
700 kPa
