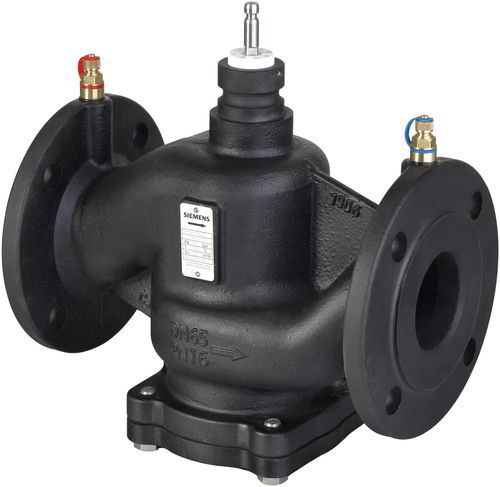

Globe valve VPF44.100F70hydraulicfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- hydraulic
- Function
- for control
- Media
- for water
- Body
- flange
- Applications
- heating, HVAC, air conditioning
- Associated function
- reducing, balancing
- Other characteristics
- pressure-independent
- DN
100 mm
(3.937 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 1 °C
(34 °F)Max.: 120 °C
(248 °F)- Flow rate
Min.: 12.2 m³/h
(430.84 ft³/h)Max.: 69.6 m³/h
(2,457.9 ft³/h)
Description
For use in heating, ventilation, air conditioning systems and district heating as a control valve in closed circuits.
Technical Specifications
Stroke
40 mm
Leakage rate
Class IV (0…0.01% of volumetric flow)
Volumetric flow Vmin
12.2 m³/h
Valve characteristic
Linear
Rangeability
1:100
Mounting position
Upright to 90° inclined
ΔPmin
33 kPa
SQV..P Δpmax
600 kPa
SQV..P Δps
700 kPa
