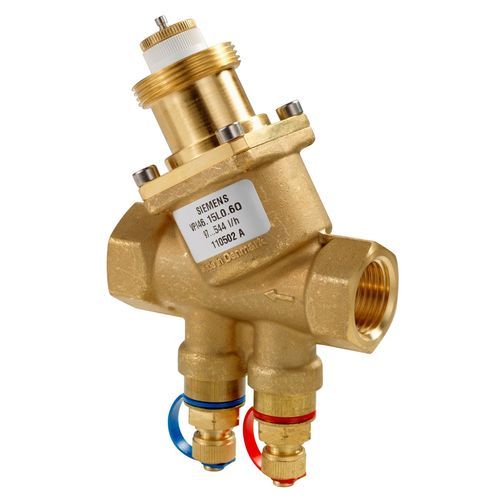

Globe valve VPI46.15L0.6Q

hydraulicfor controlfor water

Pre-adjustable Combi valves, PN 25, internally threaded for ventilation and air conditioning plants for control on the water side and automatic hydraulic balancing of terminal units, such as fan coils, induction units, and in heat exchangers for heating or cooling. heating zones like self-contained heating systems, apartments, individual rooms, etc. closed circuits Technical Specifications Stroke 2.5 mm, To DN 15: 2.5 mm mm, DN 20: 5 mm mm, DN 25-32: 5.5 mm mm, DN 40-50: 15 mm mm Leakage rate Class IV (0…0.01% of volumetric flow V100) Ambient temperature, operation 1…50 °C Valve characteristic Linear Material, inside set Dezincification resistant brass (DR), CW602N, stainless steel, PPS Connecting thread Rp ½" Mounting position Upright to 90° inclined Δpmax 800 kPa kPa ΔPmin 19 kPa SUA.. Δpmax 600 kPa SUA.. ΔPmin 19 kPa SSA.. Δpmax 600 kPa SSA.. ΔPmin 19 kPa SSD.. ΔPmin 1380 kPa SQD.. Δpmax 19 kPa STA..3.. Δpmax 600 kPa STA..3.. ΔPmin 19 kPa
