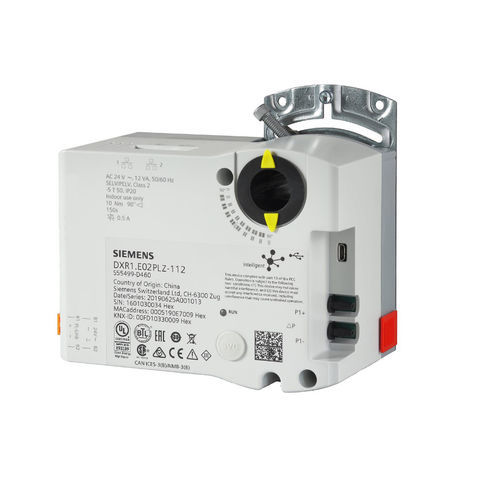

Mechanical damper actuator DXR1.E02PLZ-11290°IP20compact
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Movement
- 90°
- Protection class
- IP20
- Other characteristics
- compact
- Torque
10 Nm
(7.38 ft.lb)- Voltage
24 V
- Pressure
Max.: 500 Pa
(0.1 psi)Min.: 0 Pa
(0 psi)
Description
Combination of compact room automation station and actuator for VAV control
BACnet IP communications (BTL certified)
2-port Ethernet switch
USB interface
Plug-in terminal blocks
Technical Specifications
Frequency
50/60 Hz
Power consumption
7 VA
Communication
BACnet IP
Max. cable length
30 m
Mounting
Directly on the damper shaft
Dimensions (W x H x D)
143.1 x 83.6 x 137 mm
