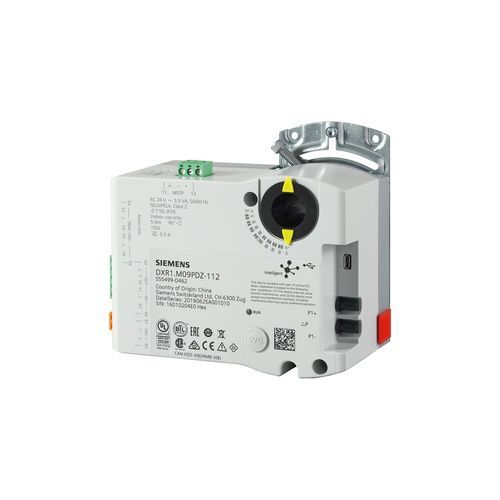

Electric damper actuator DXR1.M09P series 90°IP20compact
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- 90°
- Protection class
- IP20
- Other characteristics
- compact
- Torque
5 Nm, 10 Nm
(3.69 ft.lb, 7.38 ft.lb)- Voltage
24 V
- Pressure
Max.: 500 Pa
(0.1 psi)Min.: 0 Pa
(0 psi)
Description
Compact, configurable room automation station in combination with actuator for HVAC
BACnet MS/TP communications (BTL certified)
USB interface
Plug-in terminal blocks
Technical Specifications
Frequency
50/60 Hz
Power consumption
Max. 5.5 VA
Communication
BACnet MS/TP
Max. cable length
30 m
Universal inputs, number
2
Digital outputs, number
4
Analog outputs, number
1
Mounting
Directly on the damper shaft
Dimensions (W x H x D)
143.1 x 83.6 x 137 mm
