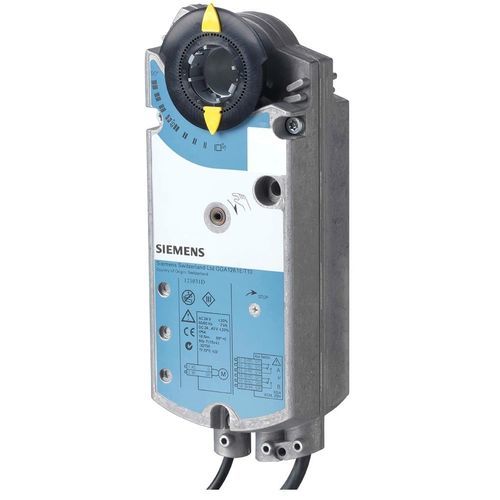

Manual damper actuator GGA126.1E/10rotaryIP54DC
Add to favorites
Compare this product
Characteristics
- Type
- manual
- Movement
- rotary
- Protection class
- IP54
- Other characteristics
- DC, with spring return
- Torque
18 Nm
(13.28 ft.lb)- Voltage
24 V
- Power
3 W, 5 W
(0 hp, 0 hp)- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)- Rotation angle
5 °, 80 °, 90 °
- Operating time
15 s, 90 s
Description
2-position
Spring return to failsafe position
Fixed auxiliary switches for switching points 5 ° and 80 °
Rigid connection between actuator and damper square shafts (10x10)
Manual setting
Position indicator
Robust, lightweight all metal housing made from die-cast aluminium and 0.9 m connecting cable
Technical Specifications
Air damper area
2,5 m²
Power consumption
7 VA, 5 W, Quiet power: 3 W
Connection cable
Supply: 2 x 0.75 mm² / auxiliary switch: 6 x 0.75 mm²
Positioning signal
2-position
Medium temperature
-32…50 °C
Ambient humidity, operation
95 % r.h.
Dimensions (W x H x D)
71 x 280 x 100 mm
Shaft linkage
10 x 10 mm
