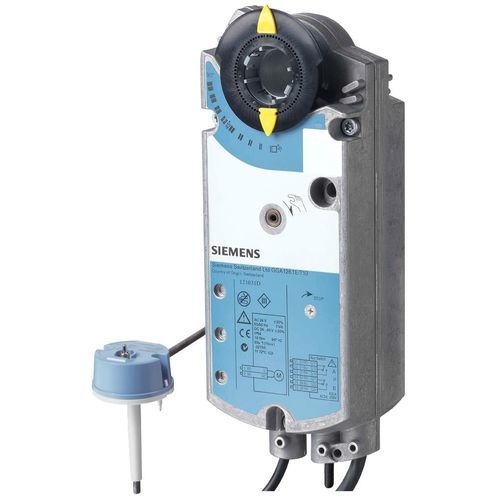

Manual damper actuator GGA326.1E/T12

rotaryIP54with spring return

2-position Spring return to failsafe position Temperature monitoring unit (Tf1: outside the duct 72 °C or Tf2: inside the duct 72 °C) Fixed auxiliary switches for switching points 5 ° and 80 ° Rigid connection between actuator and damper square shafts (12x12) Manual setting Position indicator Robust, lightweight all metal housing made from die-cast aluminium and 0.9 m connecting cable Technical Specifications Air damper area 2,5 m² Power consumption 8 VA, 6 W Connection cable Supply: 2-wire 0.75 mm²; Auxiliary switch: 6'-wire0.75 mm² Positioning signal 2-position Medium temperature -32…50 °C Ambient humidity, operation 95 % r.h. Dimensions (W x H x D) 71 x 280 x 100 mm Shaft linkage 12 x 12 mm
