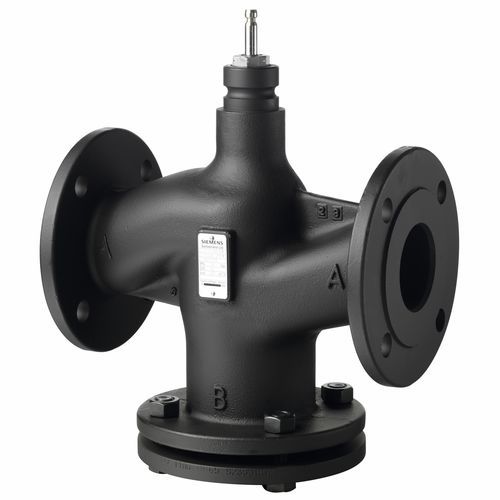

Globe valve VVF43.100-160hydraulicfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- hydraulic
- Function
- for control
- Media
- for water, for oil, for steam
- Body
- flange, seat
- Applications
- for heating, HVAC
- Associated function
- transfer
- Other characteristics
- ISO, high-temperature
- DN
100 mm
(3.937 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 220 °C
(428 °F)Min.: -20 °C
(-4 °F)- Flow rate
160 m³/h
(5,650.35 ft³/h)
Description
With flanged connections to ISO 7005
For cooling, chilled, low and high temperature water, brine, heat transfer oils, saturated steam and superheated steam in open and closed circuits
Technical Specifications
Stroke
40 mm
Leakage rate
0...0.01 % of kvs value
Valve characteristic
Equal percentage , kvs 250/400 linear
Rangeability
>100
Permissible operating pressure
1600 kPa
SAV..
Δpmax
125 kPa
SAV..
Δps
160 kPa
SKC..
Δpmax
250 kPa
SKC..
Δps
300 kPa
SKC.. Δpmax steam
500 kPa
SKC.. Δps steam
1600 kPa
