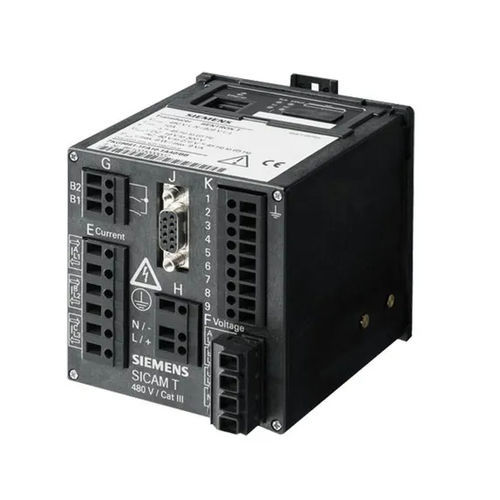

DIN rail power transducer SICAM T

SICAM T is a digital measurement transducer that allows the measuring of electrical quantities in electrical networks in a single unit. Features & functions In industries, power plants and substations, transducers are especially used for measurand (e.g. current, voltage, power, phase angle, energy or frequency) assignment into further processing through analog outputs or communication interface for precise control, notification or visualization tasks. •Design: Compact and robust for flexible application in industrial and utility environments •Connections in 1-phase systems, in 3-wire and 4-wire systems •Applications: Flexible for power utilities, industrial and commercial sector applications •Measurements: up to 60 measured or calculated values available •Temperature range: -25 °C to +55 °C/-13 °F to 131 °F •Uncertainty: typically 0.1 % for voltage and current at rated input IEC 60688, and 0.2 s acc. to IEC 62053-21 •High EMC immunity: according to standards EN 61000-6-2 and EN 61000-6-4 for the EMC directives, and with the standard EN 61010-1 for the low-voltage directive •UL Certfication: This product is UL-certified to standard UL 61010-1.
