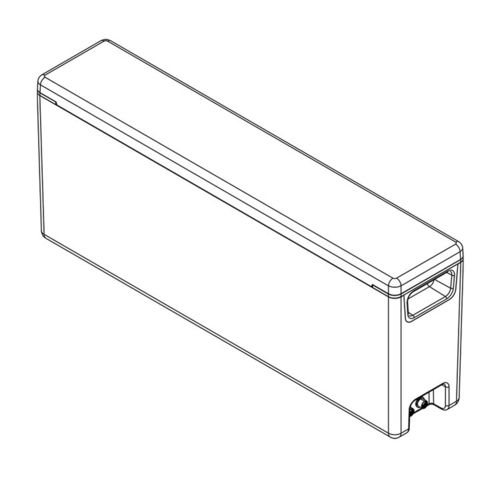

LiFePO4 battery BA48V72Ah

rectangular24 V48 V

MODULE Technology - LiFePO4 Cell configuration - 16S1P / 8S2P Nominal voltage - 51.2 V / 25.6 V Nominal capacity - 72Ah / 144Ah Nominal power - 3,686 kWh Weight - 35 Kg Storage temperature - -20 °C ~ 45 °C Storage humidity - < 70% INTEGRATED BMS Topology - Master / Slave (distributed) Balancing - Dynamic (Active & passive) Cell connection and power distribution - By PCB Communication - Bus CAN / Wifi / Bluetooth Display Fonction - Voltage - Temperature - SOC - SOH Data storage - SD Card Dimension - 800x151x312mm Protection class - IP43 DESIGN STANDARDS CE Marking - Low Voltage Directive (2014/35/UE) Electromagnetic compatibility (2014/30/UE) Restriction of Hazardous Substances (2011/65/EU) Transport - UN 38.3 Emission / Immunity - UNE-EN 61000-2 UNE-EN 61000-6-3 Low voltage directive - Bus CAN / Wifi / Bluetooth Battery safety - IEC 62619
