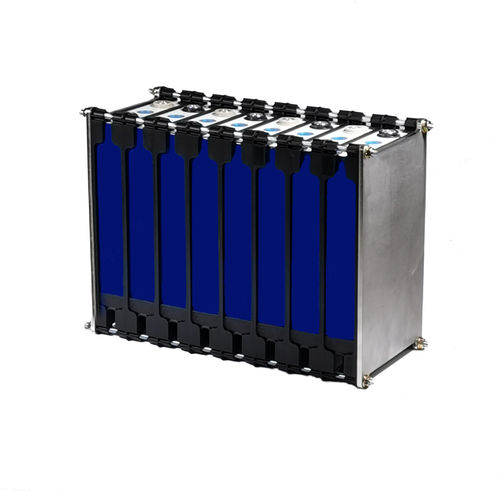

LiFePO4 battery module 24V105Ah

24 VBMS

DESCRIPTION Reference - MOLFP24V105Ah Model - 24V105Ah 1P8S Type - LiFePO4 (LFP) Weight - 17 kg Nominal capacity (1 C) - 105 Ah Nominal voltage - 25.6 V Life cycle (charging CC/CV @0.5C & discharging CC @1C, 100 DOD, 25°C +/-2°C80% of rated capacity) - ≥2500 Dimension - 244mm x 318mm x 140mm OPERATING CONDITIONS Maximum constant charging current - 105 A Maximum constant discharging current - 105 A Charging cut-off voltage - 29.2 V Discharging cut-off voltage - 20 V Recommended SoC usage window - 10 % ~ 90 % Charging temperature - 0°C ~ 55°C Discharging temperature - -20°C ~ 55°C APPLICATIONS ESS-Big/GridSupport ESS-Small,ESS-Telecom(UPS) EV-Boats EV-PublicTransport EV-Retrofit EV-Utility/IndustrialVehicles ESS-Solar&Wind FEATURES Energy - 2.7 kWh Energy density - 163 Wh/kg Packaging materials - Recycled Plastic Recommended BMS - BMS24V105Ah https://www.directindustry.com/prod/sig-energy-technology/product-223271-2303743.html
