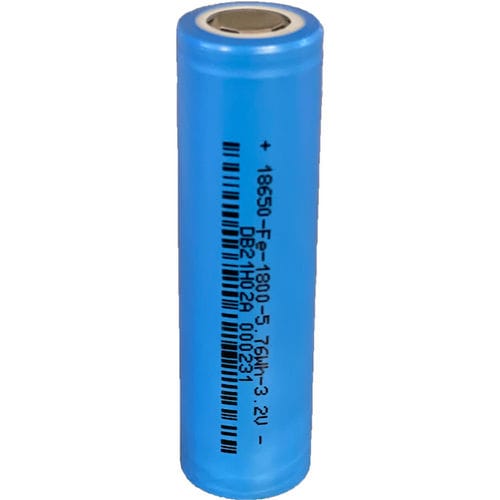

LiFePO4 battery 18650Fe-1800cylindrical3 Vindustrial
Add to favorites
Compare this product
Characteristics
- Type
- LiFePO4
- Configuration
- cylindrical
- Voltage
- 3 V
- Applications
- industrial, for power tools, for electric bike, for AGV, for forklift trucks, for marine applications, commercial, for telecommunications equipment, solar
- Standard
- UL
- Load capacity
1.8 Ah
- Weight
Min.: 41 g
(1.45 oz)42 g
(1.48 oz)Max.: 43 g
(1.52 oz)
Description
DESCRIPTION
Reference - 18650-Fe-1800
Format - Cylindrical
Type - LiFePO4 (LFP)
Nominal voltage - 3,2 V
Internal resistance (1 kHz AC) - ≤ 40 mΩ
Life cycle (charging CC/CV @1C & discharging CC @1C,80% of rated capacity) - ≥3000
Energy Density - 138,79 Wh/kg
Shipping Classification - UN3480
OPERATING CONDITIONS
Maximum constant charging current - 1,8 A
Maximum constant discharging current - 5,4 A
Charging cut-off voltage - 3,65 V
Discharging cut-off voltage - 2,5 V
Charging temperature - 0°C ~ 55°C
Discharging temperature - -20°C ~ 60°C
Storage temperature within 1 year - -10°C ~ 20°C
CERTIFICATIONS
UN38.3 ; UL1642
APPLICATIONS
ESS-Big/GridSupport
ESS-Small,ESS-Solaire&Eolien,ESS-Telecom(UPS)
EV-Boats
EV-Cars,Motorcycles,Bikes
EV-PublicTransport
EV-Retrofit
EV-Utility/IndustrialVehicles
