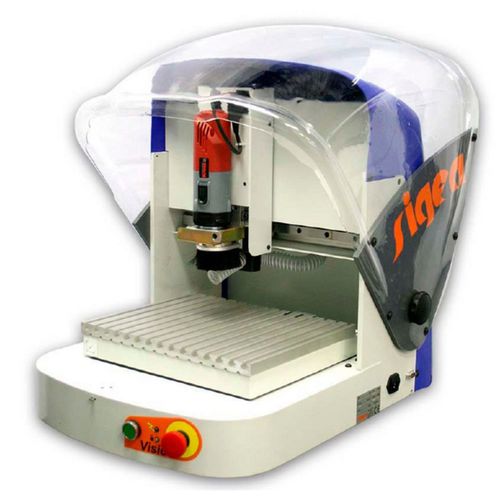

3-axis CNC milling machine VISIO Fverticalwith fixed tablefor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with fixed table
- Machined material
- for aluminum, for wood
- Applications
- for model making, for molds
- X travel
300 mm
(11.81 in)- Y travel
210 mm
(8.27 in)- Z travel
100 mm
(3.94 in)- Rotational speed
Min.: 10,000 rpm
(62,832 rad.min-1)Max.: 29,000 rpm
(182,212 rad.min-1)- Power
800 W
(1.09 hp)
Description
Designed to machine soft materials, to gluing etc., the VISIO F has strokes 300x210x100 mm
with its in motorization stepper, it is compatible with many software or is programmable in ISO code
It can machine soft materials such as plastics, wood, resins, aluminum, brass.
It is used by modelers, mold makers, engravers etc. Depending on its tools, it can be used for
glue depositing, medical applications, dimensionnal control . Compatible with many software.
Technical characteristics:
Stroks 300 x 210 x 100 mm
Ballscrew 12 x 5 mm
3 x stepper motors 0.8 Nm
Repetability 0.0125 mm
Prismatic guides and skids
800W spindle with adjustable speed from 10000 to 29000 rpm with 8 mm clamp
Adjustable spindle height
Tool sensor
Provided with the pipe for chip extraction
Protective cover and CE certification
