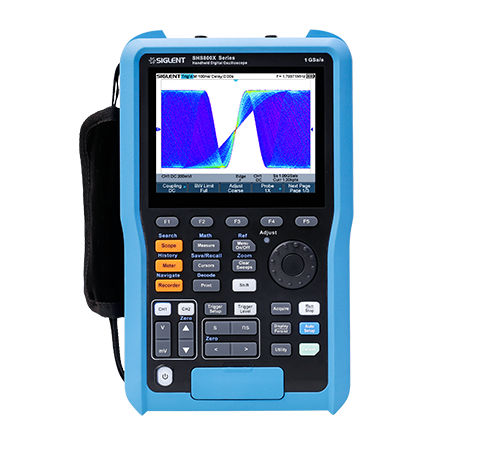

Digital oscilloscope SHS800X Series

hand-held2-channelwith LCD display

The SHS800X series has two non-isolated scope channels and one isolated multimeter channel, including 200 MHz and 100 MHz model.A single ADC with 1 GSa/s maximum sample rate, and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is actived, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. Key Features •Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern •6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test. •1 Mpts FFT. Support Peaks and Markers •5.6-inch TFT-LCD display with 640 * 480 resolution •UL2054 certified lithium battery pack, 6900 mAh capacity, external charger
