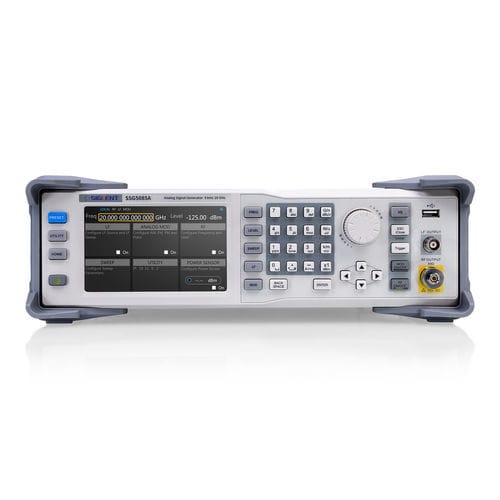

Signal generator SSG5000A Series

RFmicrowaveUSB

•Frequency up to 13.6 GHz / 20 GHz •0.001 Hz frequency setting resolution •Level setting range: -130 dBm ~ 25 dBm •Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.) •Level error ≤ 0.7 dB (typ.) •Standard AM & FM & PM & pulse modulation •Single pulse, double pulse and pulse train generator (option) SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production. Key Features •Frequency up to 13.6 GHz / 20 GHz •0.001 Hz frequency setting resolution •Level setting range: -130 dBm ~ 25 dBm •Phase Noise: -120 dBc / Hz @ 1 GHz,20 kHz offset (typ.) •Level error ≤ 0.7 dB (typ.) •Provides AM, FM, PM analog modulation with internal, external or Int+Ext source •Single pulse, double pulse and pulse train generator (option) •The power meter control kit can easily use the power meter to measure power, control power output and correct line loss •5 inch TFT capacitive touch screen, mouse and keyboard supported •Web browser remote control on PC and mobile terminals •Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
