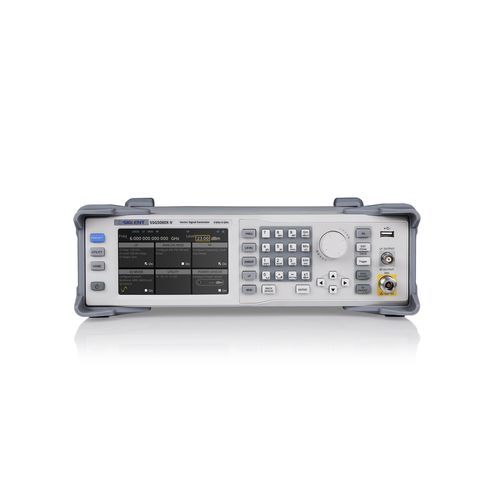

Signal generator SSG5000X Series

functionRFdigital

•Frequency up to 4 GHz/6 GHz •001 Hz frequency setting resolution •Maximum output power up to +26 dBm (typ.) •Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.) •Single pulse, double pulse and pulse train generator (option) SIGLENT’S SSG5000X series of signal generators can generate analog and vector signals, and have a frequency range of 9 kHz to 4 GHz/6 GHz. They feature industry-leading performance in phase noise, spectral purity, bandwidth, EVM, output power. The internal IQ modulation generator and waveform playback function make it easy to create even the most complex signal types. They also cover the most important RF band for digital wireless communications and include standard waveform files. The SIGLENT SSG5000X are powerful and cost-effective sources that are ideal for R&D, education, and manufacturing. Key Features •Frequency up to 4 GHz/6 GHz •001 Hz frequency setting resolution •Maximum output power up to +26 dBm (typ.) •Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.) •User-programmable flatness correction •Provides AM, FM, and PM analog modulation with internal, external, or Int+Ext source •Single pulse, double pulse, and pulse train generator (option) •Internal IQ modulation with 150 MHz modulation bandwidth with perfect in-factory calibration •Built-in digital communication standard waveform sample files such as 5G-NR, LTE, WCDMA, WLAN, Blue-Tooth, CDMA •Internal Custom mode to generate common IQ signals such as QAM, FSK, ASK, MSK •Analog differential I/Q outputs •External analog I/Q input •USB-power meter measurement
