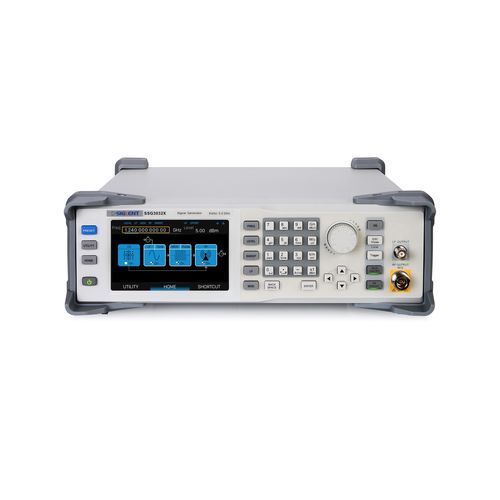

Signal generator SSG3000X Series

pulsefrequencynoise

Frequency up to 2.1 GHz/3.2 GHz Maximum level up to +20 dBm (typ.) Level output from -110 dBm to +13 dBm Level accuracy ≤0.7 dB (typ.) Standard AM & FM & PM & pulse modulation Pulse train Generator (option) SIGLENT’S SSG3000X series of signal generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz. They provide normal analog modulation such as AM, FM, and PM. They also provide pulse modulation and pulse train generator. In addition, when used with baseband generator such as SDG6000X, They can generate IQ modulated signals. With their high accuracy and pure outputs, the SSG3000X series is the right choice for R&D, education, and manufacturing. Key Features •Frequency up to 2.1 GHz/3.2 GHz •0.01 Hz frequency setting resolution •Level output from -110 dBm to +13 dBm •Maximum level up to +20 dBm (typ.) •Phase Noise : -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.) •Level accuracy ≤0.7 dB (typ.) •Provides AM, FM, &PM analog modulation with internal, external or Int+Ext source •Pulse modulation, on/off ratio ≥70 dBc •Pulse train Generator (option) •External IQ modulation with SDG6000X as the baseband IQ signal •USB-power meter measurement kit •5 inch TFT capacitive touch screen, Mouse and keyboard supported •Web Browser Remote Control on PC and mobile Terminals •Standard interface include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
