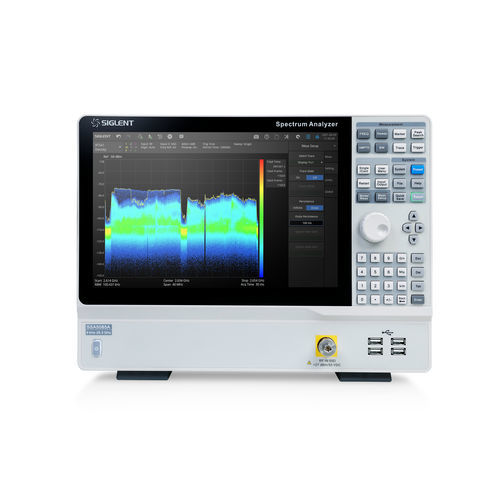

Signal analyzer SSA5000A Series

monitoringdensitynoise

The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference. Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance. Key Features •Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz/26.5 GHz •-165 dBm/Hz Displayed Average Noise Level (Typ.) •-105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.) •25 MHz/40 MHz Real Time Analysis Bandwidth (opt) •100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT •Channel power, ACPR, OBW, Harmonic, TOI measurement etc. (opt) •Analog Modulation Analysis and Vector Digital Modulation Analysis (opt) •12.1 inch Multi-Touch Screen, HDMI output •Web Browser Remote Control on PC and Mobile Terminals and File Operation
